Learning how to change belt on a whirlpool dryer is a great way to save money. The belt is a long rubber band that wraps around the big metal dryer drum. When the motor spins, the belt makes the drum turn. If this belt snaps or gets too loose, your clothes will just sit in a cold pile. You do not need to buy a brand new machine. You can do this job yourself right at home.
This guide will show you every single step. We will explain it in simple words so anyone can do it. All you need are a few basic tools and a little bit of time. By doing this project, you will learn a useful skill. Your clothes will be warm and dry again in no time. Let us get started on this easy fix.
Why You May Need to Change a Whirlpool Dryer Belt
Your dryer works very hard every week. The big drum inside holds heavy, wet clothes. The rubber belt has to pull all of that heavy weight around and around. Over time, the rubber gets hot and tired. It can start to crack and wear out. This is a normal part of owning a laundry machine.
When you do a whirlpool dryer belt replacement, you make your machine run like brand new. A fresh belt holds the drum tight so it can spin smoothly. If you ignore a bad belt, it can put too much stress on the motor. That could cause bigger and more expensive problems later. Replacing it now is a smart way to protect your machine. It is a quick chore that keeps your home running happily.
Signs Your Whirlpool Dryer Belt Needs Replacing
How do you know if your belt is having trouble? Your dryer will usually give you some clues. If you notice dryer belt broken symptoms, you should check the belt right away. One big clue is if the dryer makes a loud thumping sound. Another clue is if you hear a squeaky sound while it runs.
Sometimes, the dryer turns on and gets hot, but the drum does not move. If you open the door and can spin the drum very easily with your hand, the belt is likely broken. A good belt should make the drum feel a bit heavy to push. If you see black rubber dust under the machine, that is also a sign of wear. Watching for these signs helps you fix the issue before the belt snaps completely.
Tools and Supplies You’ll Need
You do not need an expensive toolkit for this job. You only need a few basic dryer repair tools needed to get things done. First, grab a screwdriver. A multi-screwdriver with different heads is perfect. You will also need a nut driver, which looks like a screwdriver but works on small bolts.
Next, find a putty knife. A putty knife is a flat metal tool that helps pop open metal clips. It is also smart to have a pair of work gloves to protect your fingers from sharp metal edges. Finally, make sure you have your new dryer drum belt ready to go.
Here is a quick reference table to help you gather your supplies before you begin:
| Tool Name | What You Use It For | Is It Required? |
| Putty Knife | To pop open the top lid clips | Yes |
| Screwdriver | To remove cabinet screws | Yes |
| Nut Driver | To turn small metal bolts | Yes |
| Work Gloves | To protect fingers from sharp metal | Yes |
| New Dryer Belt | To replace the broken rubber band | Yes |
Having everything set up on a clean table nearby will make the job go much faster.
Safety Tips Before Replacing the Belt
Safety is always the most important step in any home project. Before you touch any tools, you must think about safety first. Dryers use electricity and have moving parts inside. You must never work on a machine that is still plugged into the wall. Always pull the plug out of the outlet first.
If you have a gas dryer, you must also turn off the gas valve. This keeps you safe from any leaks. Wear sturdy shoes to protect your feet in case you drop a tool. It is also helpful to have a friend nearby to help you lift heavy parts. Taking these simple safety steps makes the whole job smooth and worry-free.
| Also Read: How Do I Put a Belt Buckle on a Belt |
How to Change the Belt on a Whirlpool Dryer
Now we are ready to start the main repair. This section is your complete dryer belt replacement guide to help you do the job. We will break the process down into small, simple steps. Take your time and do not rush through any part of it.
We will show you how to open the cabinet, remove the old band, and put the new one in place. If you follow along step by step, you will see that whirlpool dryer repair is actually quite simple. Let us begin with the very first step.
Step 1: Disconnect the Power
Go to the back of your dryer. Firmly grab the power plug and pull it out of the wall outlet. If your plug is hard to reach, go to your home electrical box. Find the switch for the dryer and flip it to the off position.
This step stops all electricity from flowing to the machine. It is the absolute best way to stay safe. Double-check by trying to turn the dryer on. If nothing happens, you are ready to move to the next step.
Step 2: Pull the Dryer Away From the Wall
Gently slide the dryer forward so you have room to work. You need enough space to stand behind and around the machine. Be careful not to pull too hard on the large silver vent pipe on the back.
If the vent pipe is tight, slide it off the dryer link. You can easily clamp it back on when you are finished. Having plenty of open space makes it much easier to handle the large metal panels.
Step 3: Remove the Top and Front Panels
Use your putty knife to push into the gap under the top lid. Push the clips in to release the top panel. Swing the top up and lean it back. Next, use your nut driver to take out the screws holding the front panel.
You will need to unplug the small wire clip that goes to the door switch. Once that wire is free, lift the front panel off and set it aside safely. Now you can see the big drum inside.
Step 4: Take Off the Broken Belt
Look inside the bottom of the dryer cabinet. You will see the motor and a small wheel on a metal arm. If the old belt is broken, it might already be lying on the floor. If it is still on, gently pull it off the wheel.
Slide the old belt off the front of the big drum. Take a moment to wipe away any dust or lint inside the cabinet. Cleaning this area helps your new parts last a lot longer.

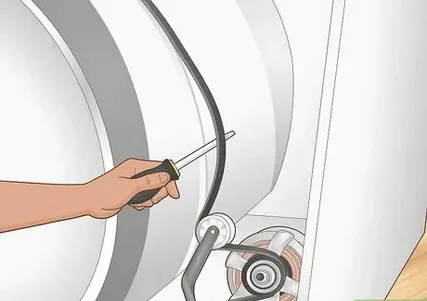

Step 5: Install the New Belt Around the Drum
Take your new belt and loop it over the big drum. Make sure the grooved side of the rubber is facing down against the metal drum. The smooth side of the belt should face out toward you.
Line the belt up with the old mark on the drum where the previous belt used to sit. This keeps the belt straight and centered. Let the excess length of the belt hang down under the bottom of the drum.
Step 6: Route the Belt Around the Idler Pulley and Motor Pulley
Reach under the drum to find the dryer belt tensioner pulley and the motor. You will need to loop the belt around both wheels to create tension.
Push the idler arm to the side to make space. Wrap the loop of the belt under the idler wheel and then over the small metal motor pulley shaft. When you let go of the arm, it should spring back. This spring action keeps the belt nice and tight.
Step 7: Reassemble the Dryer
Now it is time to put everything back together. Lift the front panel back onto the dryer frame. Put the screws back in and tighten them up. Do not forget to plug the small door switch wire back in.
Lower the top lid down and press it until the metal clips snap shut. Slide the silver vent pipe back onto the rear exhaust and tighten the clamp. Your dryer is now fully put back together.
Step 8: Test the Dryer
Plug the power cord back into the wall outlet. Open the dryer door and place a few clean towels inside. Close the door and select a quick cycle, then press the start button.
Listen closely to how it sounds. The drum should turn smoothly and quietly. If you hear a gentle hum and the drum spins, you have successfully completed your DIY dryer repair!
Common Mistakes to Avoid
Even smart people make mistakes sometimes. One common error is putting the new belt on backward. If the smooth side faces the drum, the belt will slip and fail to turn. Always ensure the grooved side is touching the metal drum.
Another mistake is forgetting to plug the door switch wire back in. If you forget this wire, the dryer will not start at all. Finally, do not rush when routing the belt around the pulleys. If it is not lined up correctly, the belt can slide off as soon as you start the machine. Taking your time prevents you from having to open the dryer up a second time.
Troubleshooting After Belt Replacement
What if your dryer does not work right away? Do not worry, we can use some whirlpool dryer troubleshooting steps to figure it out. If the machine turns on but you hear a loud squeal, the belt might be twisted. You will need to open the top and make sure the belt is lying flat.
If the motor hums but the drum does not turn, the belt might have slipped off the pulley wheels. Open the cabinet and check the routing again. If the dryer will not turn on at all, double-check that the power plug is secure and the door switch wire is plugged in tight. Most issues are easy to fix with a quick second look.
How to Keep Your Whirlpool Dryer Belt in Good Condition
You want your new belt to last for many years. The best way to do this is with regular maintenance. Here are a few helpful dryer maintenance tips to protect your machine. First, never overload your dryer with too many heavy blankets at once. Too much weight puts heavy stress on the belt and motor.
Second, clean your lint screen before every single load of laundry. Good airflow keeps the inside of the dryer from getting too hot. Extreme heat can dry out the rubber belt and make it crack faster. Keeping the inside of the dryer cabinet clean and dust-free also helps the wheels turn smoothly.
When to Call a Professional
This repair can usually be accomplished in the homeowner’s garage. But at times, it’s best to bring in an expert. If you see rusted parts or wires are broken, have a professional repairer inspect the dryer.
If it’s been replaced, but the drum still isn’t spinning, it may be the motor, or the electronic control board may be malfunctioning. If you don’t know what to do or feel a bit uneasy then don’t hesitate to hire a technician! A professional repair service will be able to easily and safely pinpoint and fix the problem if it is complex.
Final Thoughts
Changing the belt on your Whirlpool dryer is a wonderful weekend project. It saves you the high cost of a repair bill or buying a new machine. With just a few simple tools and some patience, you can get your dryer running like new again.
We hope this guide gave you the confidence to try this repair yourself. Taking care of your home appliances is a great way to save money and keep your home running smoothly. Happy fixing, and enjoy your fresh, warm laundry!
Frequently Asked Questions
Here are quick answers to some common questions about dryer belts.
How do I know if my Whirlpool dryer belt is broken?
If the dryer motor hums but the drum does not spin, the belt is likely broken. You can also test this by opening the door and spinning the drum with your hand. If it spins very easily with no resistance, the belt has snapped.
Can I replace a Whirlpool dryer belt without special tools?
Yes, you do not need special tools. You only need a standard screwdriver, a nut driver, and a flat putty knife. These are common tools that many people already have in their garage.
How long does it take to change a Whirlpool dryer belt?
For a beginner, the entire process usually takes about 30 to 45 minutes. If you have done it before, it can take less than 20 minutes. Just take your time and follow each step carefully.
Do all Whirlpool dryer models use the same belt?
No, they do not all use the same belt. Front load dryer belt sizes can vary depending on your model. You should look at your whirlpool dryer manual or check the sticker on your machine to find your whirlpool dryer model number. Use that number to find the exact replacement part.
Why is my Whirlpool dryer not spinning after replacing the belt?
This is a common dryer not spinning fix issue. It usually means the belt slipped off the motor pulley or the idler wheel. Open the dryer cabinet and check to make sure the belt is routed correctly and has plenty of tension.
